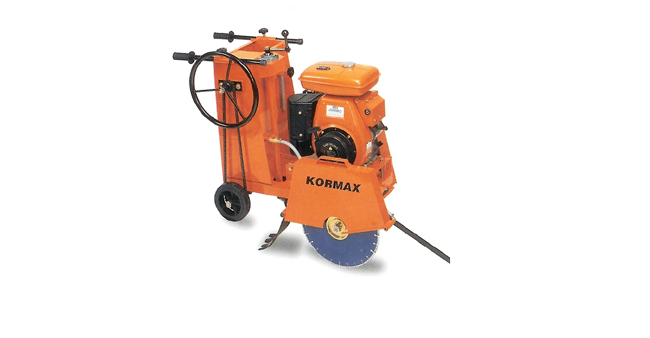

Concrete / Asphalt Cutter

Kormax¡¯s cutter is designed with the focus on ensuring strength and durability.
Whether cutting concrete or asphalt, the strong main frame structure adds the strength necessary to reduce vibration while cutting work.
The crank easily raises and lowers the blade and locks into position, maintaining a constant depth of cutting and strong frame structure which resists warping and vibration helps the saving on blade wear, component parts and prolongs the life of the saw balde.



Concrete / Asphalt Cutter

Model

Measurement (HxWxL)

Max. Cutting Depth

Water Tank

Blade Size

Weight

Engine to be mounted

KCC-16

1030x570x1540

160mm

36Litre

12-18"

135Kgs

12.00hp/3600rpm

KCC-16-JI

970x680x1200

160mm

36Litre

12-18"

135Kgs

12.00hp/3600rpm

KCC-20

1050x600x1540

185mm

65Litre

12-22"

140Kgs

15.00hp/3600rpm

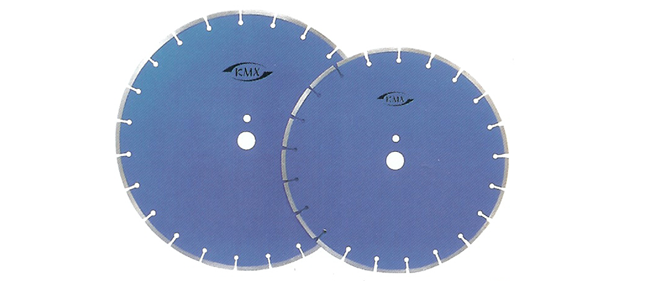

¡åOptional Diamond Saw Blade

Concrete / Asphalt Cutter

             Diameter

Segment

Inch

mm

L x T x W (mm)

14"

350

40 x 3.1 x 7.0

16"

400

40 x 3.1 x 7.0

16"

400

40 x 3.3 x 7.0

18"

450

40 x 3.3 x 7.0

20"

500

40 x 4.0 x 7.0

22"

550

40 x 4.0 x 7.0

      * Application for green, cured concrete & asphalt
