Vibration Roller  |  Single Drum Vibratory Roller

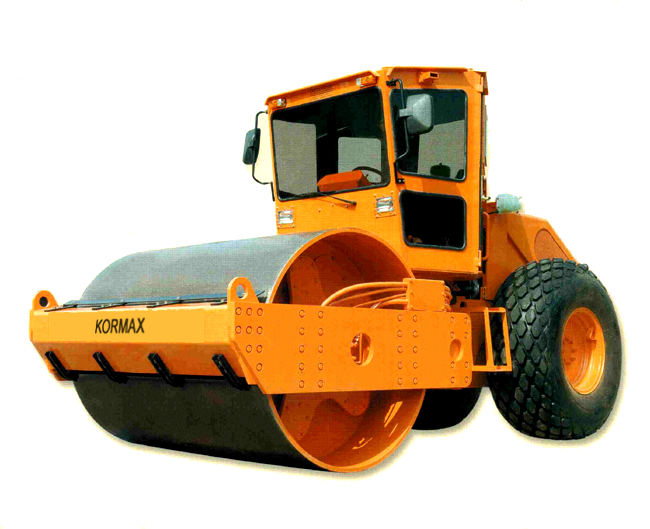

Kormax¡¯s single drum vibratory roller can guarantee excellent working efficiency by smooth vibrating and powerful centrifugal force and it is most suitable for soil compacting and road making works and it is also used in harbors, airfields, dams, and industrial sites.

Vibration Roller  |  Single Drum Vibratory Roller



MODEL

KVR-58

KVR-112

ENGINE

IVECO (8035E00)

IVECO DIESEL (F4GEO484C)

POWER (NORMAL, MAX. OUTPUT)

MAX. 60PS/2500RPM

87 - 126HP(2300RPM)

MAX. TORQUE

210Nm/1400RPM

51kg.m/1,400RPM

VOLUME (DISPLACEMENT)

2,900CC

4,500CC

FUEL CONSUMPTION

9 LITRE / HOUR

13 LITRE / HOUR

ELECTRIC SYSTEM

12 V

12 V

VIBRATING SYSTEM

HYDRAULIC PUMP

HYDRAULIC PUMP

MAX. TRAVELING SPEED

10.6KM/H

11.7KM/H

CIRCLE (TURNING) RADIUS

4,380mm

5,940mm

STEERING ANGLE

+/- 30 DEGREE

+/- 30 DEGREE

STEERING SYSTEM

ARTICULATED

ARTICULATED

VIBRATING FREQUENCY

32Hz

35Hz

FRONT WHEEL SIZE

1,700 x 1,200mm

2,120 x 1,500mm

REAR TIRE SIZE

12.5 - 20 8PR

23.1 - 26

CENTRIFUGAL FORCE

115kN

230Kn

MAX. VIBRATING ALTITUDE

1.2mm

2.0mm

MIN. VIBRATING ALTITUTE

0.8mm

1.0mm

OPERATING WEIGHT

5,880KGS

11,200KGS

FRONT WHEEL LOAD

3,880KGS

6,510KGS

REAR WHEEL LOAD

2,065KGS

4,690KGS

VPM

2,900VPM

2,070VPM

GRADEABILITY

26o

26o

SIZE (L x W x H)

4,615 x 1,920 x 2,900mm

5,490 x 2,355 x 2,900mm
