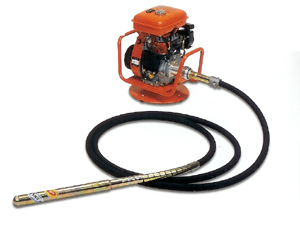

Concrete Vibrator

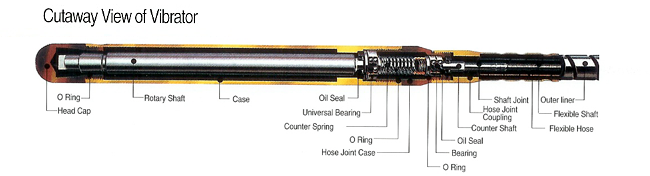

Kormax concrete vibrator is designed to fulfill excellent compaction jobs by generating strong vibration in any working conditions; building construction and civil engineering works where require high quality concrete structure.  All critical parts of vibrating head and flexible drive shaft come through special hardening process to guarantee a long durability of products.

Gasoline engine or electric vibration motor is used as its power source.

Kormax flexible drive shaft (inner core) is wound from high carbon spring-wire to resist unraveling and stretching and strong flexible rubber hose (outer casing) constructed of steel flat-wire is covered by alternating layers of wire mesh, fablic and rubber as well.

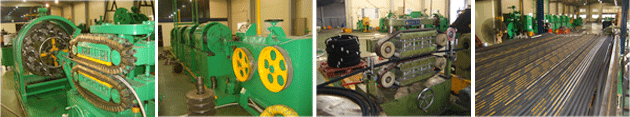

These two critical parts are manufactured in our own plant under strict quality control system.

Concrete Vibrator

Concrete Vibrator

Concrete Vibrator

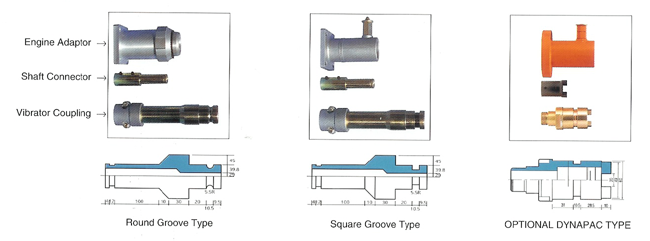

¡å Engine Adaptor & Coupling



Concrete Vibrator

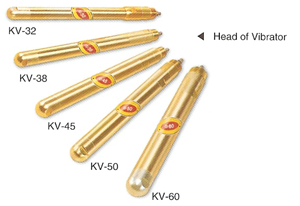

Model

Poker Head
Dimensions (mm)

V.P.M

Vibration
Amplitude (mm)

Flexible Shaft
Diameter (mm)

Rubber Hose
Dia. & Length

Power Source

Gasoline engine

Electric motor

KV-28

¥õ28 x 450

10,000~12,000

0.7

8

28mm x 4~6m

¡¡ Honda GX160T1

(Max. 5.5Hp/3600rpm)

Robin EY20-3D
(Max. 5.0Hp/3600rpm)

¡¡

1Hp

KV-32

¥õ32 x 450

1.1

10

31mm x 4~6m

KV-38

¥õ38 x 450

1.6

KV-45

¥õ45 x 500

2.0

KV-50

¥õ50 x 500

2.2

13

33mm x 4~6m

1.5Hp

KV-60

¥õ60 x 500

9,000~12,000

2.4

2.0Hp
