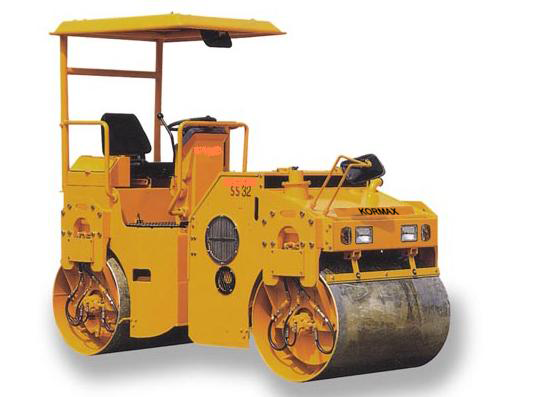

Vibration Roller  |  Ride - on Tandem Vibration Roller



Kormax¡¯s small and midium-size tandem vibration roller is most suitable for compacting works of soils and rockfills on road making and also of tennis and turf ground.
It is also used for asphalt paving of roads, streets and industrial areas.
Propulsion and vibration naturally comes as standard on both drums
..

Vibration Roller  |  Ride - on Tandem Vibration Roller



MODEL

KVR-SS13

KVR-SS20

KVR-SS32

KVR-SS50

OPERATING WEIGHT

1,350KGS

2,000KGS

3,200KGS

4,350KGS

DRUM SIZE (DIA x W x T)

900 x 505mm

1,000mm (W)

805 x 1,200 x 13mm

805 x 1,350 x 13mm

OVERALL SIZE (L x W x H)

1,875 x 1,000 x 1,450mm

2,310 x 1,100 x 1,650mm

2,950 x 1,330 x 2,510mm

3,450 x 1,520 x 2,620mm

ENGINE

DAEDONG DIESEL 3C093

DAEDONG DIESEL 3A165

DAEDONG DIESEL 4A220A-S1

DAEDONG DIESEL 4A220A-S1

POWER OUTPUT

19HP/2700RPM

34PS/2700RPM

30KW (40.2HP)/2,600RPM

30KW (40.2HP)/2,600RPM

DISPLACEMENT

927CC

1,648CC

2,197CC

2,197CC

TRAVEL SPEED

0~6Km/h

0 ~ 5Km/h

1st : 0 - 5, 2nd : 0 - 10Km/h

1st : 0 - 5, 2nd : 0 - 10Km/h

GRADEABILITY

36o

36o

35/40O

35O

MAX. TORQUE

5.5PS/1900RPM

10.8kg.m/1800RPM

166Nm/1,600RPM

166Nm/1,600RPM

VIBRATORY DRUM

FRONT + REAR

FRONT + REAR

FRONT + REAR

FRONT + REAR

VIBRATING SYSTEM

HYDRAULIC

HYDRAULIC

HYDRAULIC

HYDRAULIC

DRIVE SYSTEM

HYDRAULIC

TRANSMISSION

HYDRAULIC

HYDRAULIC

FREQUENCY

60Hz

60Hz

52/60Hz

52/60Hz

AMPLITUDE (FRONT/REAR)

0.2/0.3mm

0.4mm

0.50/0.33mm

0.82/0.38mm

CENTRIFUGAL FORCE EACH DRUM

17.2kN

25.5kN

35/47kN

40/52kN

WATER TANK CAPACITY

60LITRE

80LITRE

200 LITRE

650 LITRE
